CLARK TRAILER, INC.

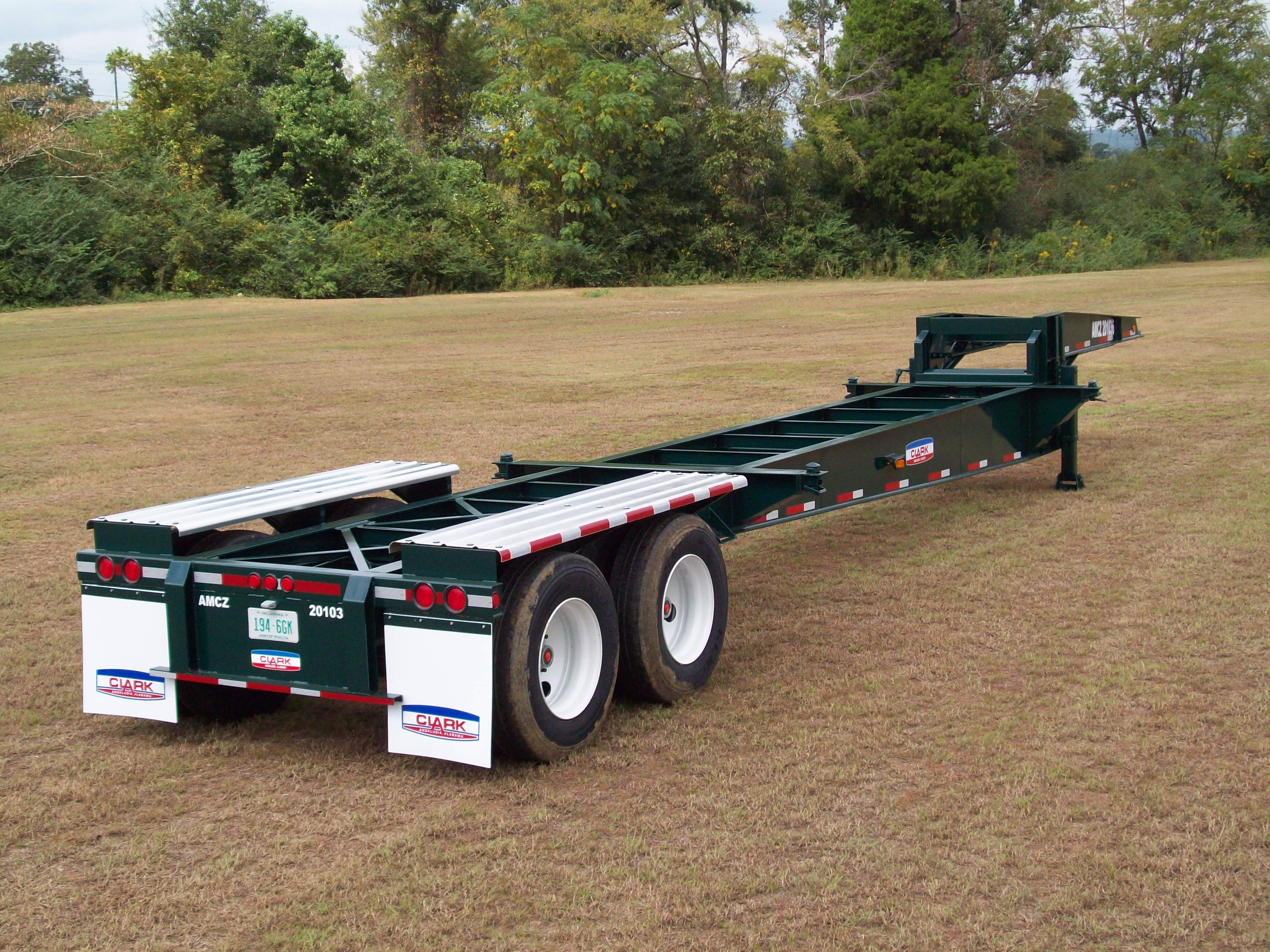

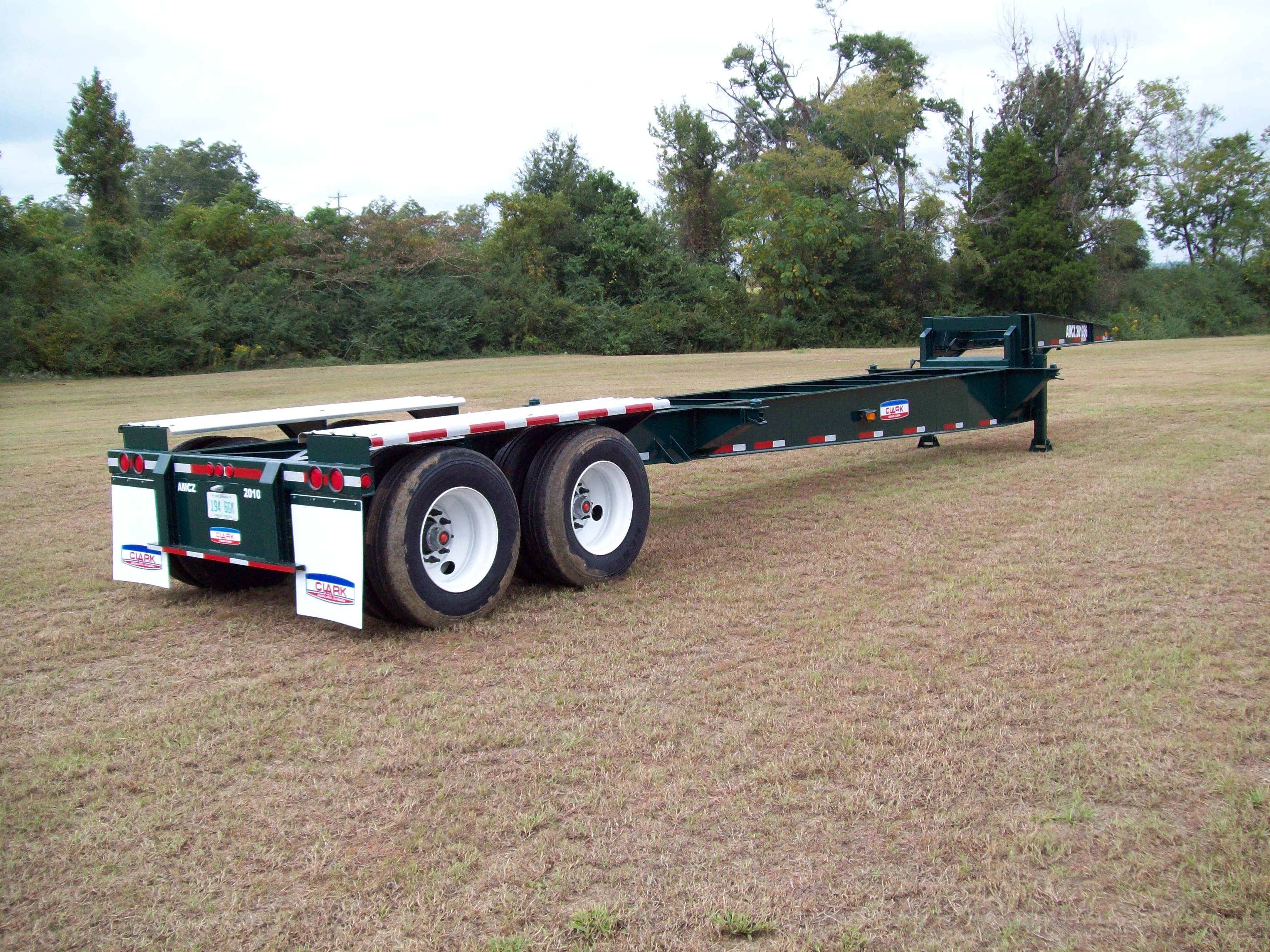

Drop Deck Container Chassis
Model CDCC-432-09
| LENGTH |
43' |
| WIDTH |
102" |
| 5th WHEEL HEIGHT |
49" |
| KING PIN |
Double spook set @ 18" from front |
| LANDING GEAR |
2-speed with 10"x10" sand shoes; heavy duty steel bracing in 2 directions for support and stability. Operating handle on roadside of trailer. |
| SUSPENSION |
Hutch H-9700T with single leaf springs |
| AXLES |
5" OD x 5/8" wall, 25,000lbs capacity |
| BRAKES |
16-1/2" x 7" with Wabco 2S/1M ABS brakes. Wabco ABS wired to center pin of seven way socket |
| WHEELS |
22.5 x 8.25 Hub - Piloted steel disc wheels pre-painted white |
| TIRE |
11R22.5 14ply Generals |
| MAIN FRAME |
34" deep fabricated automatic machine welded I-Beam. 7/16"x5" 130ksi top and bottom flanges with 3/16" belly web. |
| Twistlocks |
Four (4) Non-Retractable Twistlocks |
| PAINT |
Completely sand blasted, cleaned then primed with 2 coats of primer and 2 coats of Urethane paint. |
| MUD FLAPS |
CLARK anti-spray, anti-sail mounted on rear of trailer |
| FRONT SKIRTS |
Heavy duty 6" extruded aluminum
|
|
|
