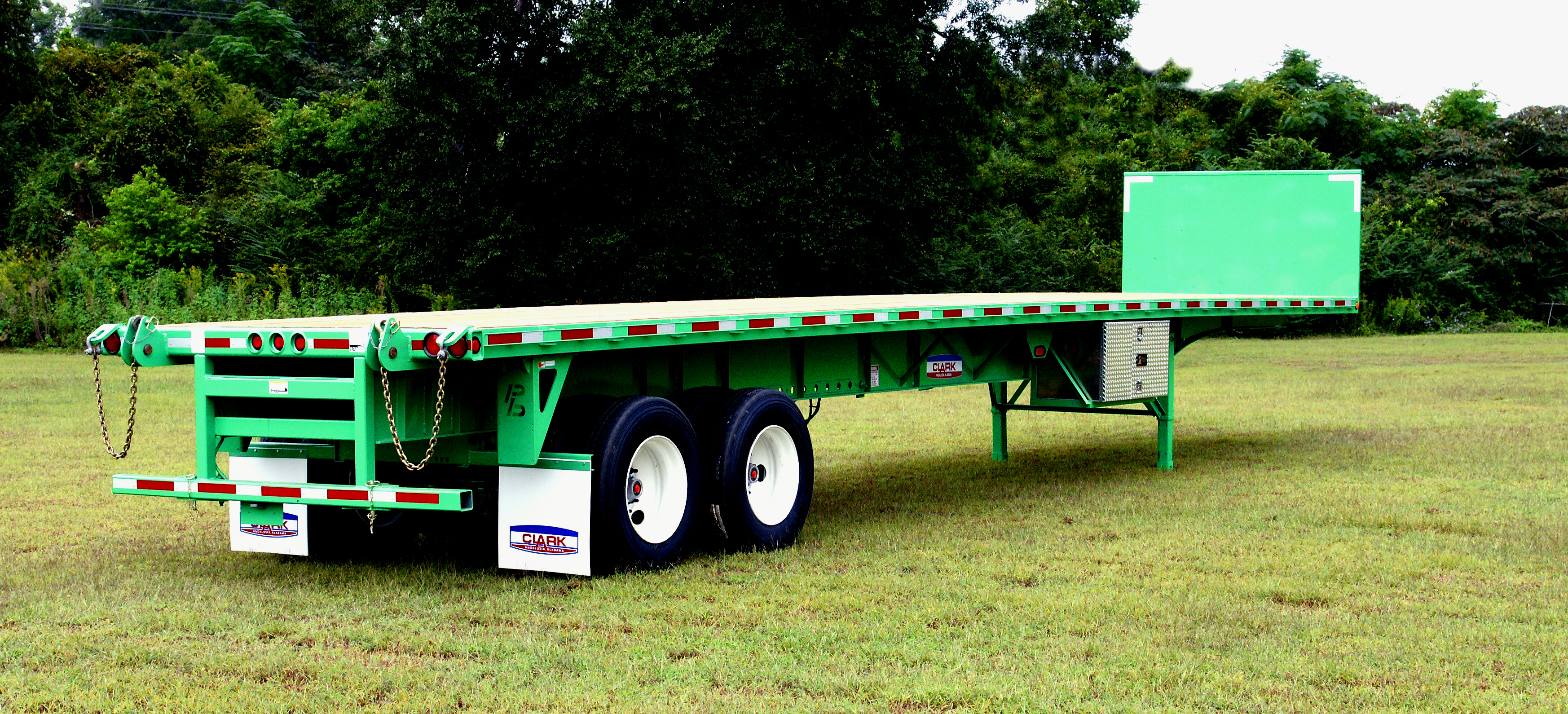

Model CFBT-SLFL-09

LENGTH 32ft - 48ft
WIDTH 96" - 102"
KING PIN Double Spool set @ 36" from front
LANDING GEAR 2-speed with 10"x10" sand shoes, heavy duty steel bracing in 2 directions for support and stability. Operating handle on roadside of trailer.
SUSPENSION Hutch H-9000T inside I-Beam slider with Hutch H-9700T side mount hanger with 3 leaf springs
AXLES 5" OD x 5/8" wall, 25,000lbs capacity
BRAKES 16-1/2" x 7" with Wabco 2S/1M ABS brakes. Wabco ABS wired to center pin of seven way socket.
WHEELS 22.5 x 8.25 Hub - Piloted steel disc wheels pre-painted white.
TIRE 11R22.5 14ply Generals
FLOORING 1-1/8" Apitong, finger jointed full length, ship-lapped. Flooring secured with two 5/16" screws per crossmembers.
ELECTRICAL USA sealed harness with 7-way plug. Truck-Lite lights.  2 front marker lights, 3 markers per side, 2 stop, turn & tail lights per side on rear, 3 markers lights at center on rear skirt and one 4" mid-turn light each side of trailer.
MAIN FRAME 24" deep fabricated automatic machine welded I-Beam with built in positive camber. 7/16" x 5" 130ksi top and bottom flanges with 3/16" belly web.  The main rail is punched to fit the contour of a 4" Jr.I-beam one piece floor sill.
SIDE RAIL 6" deep structural steel channel @ 6.5# with pockets 1-11/16" x 3-1/4" ID spaced on 24" centers with 1-1/4" pipe spools between each pocket and 3/8" x 2" skid rail.
CROSSMEMBERS 4" high tensil steel I-beam on 18" centers (12"optional)
FORK LIFT KIT Princeton P-90.1070 easy hitch three position lift kit for a PB-50 with folding rear bumper
PAINT Completely sand blasted, cleaned then primed with 2 coats of primer and 2 coats of Urethane paint.
MUD FLAPS CLARK anti-spray, anti-sail mounted on rear of trailer
FRAME CAPACITY 80,000lbs distributed frame rating. GAWR Tire rating determines legal load.
